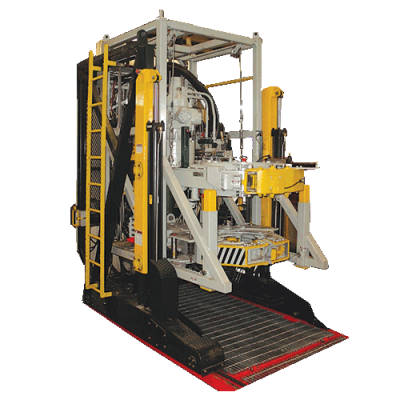

The 14 3/8 Inch Remote Tong System is a portable stand-alone tong system that is capable of accepting cassettes equipped with various Frank’s model tongs. This enables the system to accommodate pipe sizes 3 1/2 inches through 14 3/8 inches and is FLUID GRIP® capable 4 1/2 inches through 12 inches.

Features and Benefits

Equipped with Frank’s safety door interlock System

Remote operation enhances safety by removing personnel away from the well center

Quickly converts from casing mode to drill pipe landing string by adjusting the separation distance between the tong and backup

System design allows for single lift of the entire system to the rig floor

The modular rail system enables the 14 3/8 Inch Remote Tong System to be positioned on various rig floor layouts/sizes

Compatible with Frank’s DATA TREK® Advantage Data Acquisition System

Unique tong suspension system compensates for thread loss during make-up

Carriage design provides tong with 50 inches of vertical travel

Tong cage plate alignment indicator for fast tong removal

Requires rig air supply for control system
