BLACK GOLD™ Dissolvable Frac Plug

BLACK GOLD™ Dissolvable Frac Plug

BLACK GOLD™ Dissolvable Frac Plug

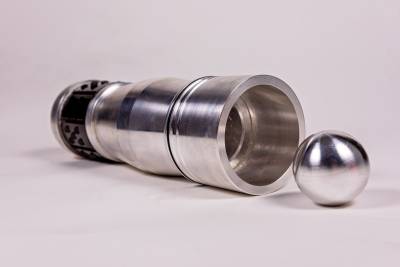

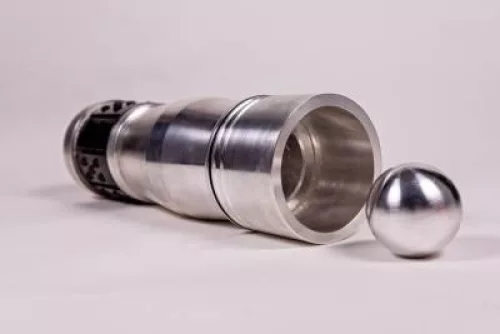

The Frank’s International BLACK GOLD™ Dissolvable Frac Plug is a high-performance plug used as a temporary barrier to separate zones during fracturing or stimulation operations. The BLACK GOLD™ design offers the most advanced dissolving materials on the market with no elastomer sealing elements and minimal rubber components. The BLACK GOLD™ offers a solution for any fracturing operation, especially those in long extended reach laterals where coiled tubing weight is limited during mill-out operations.

Features and Benefits

Dissolvable materials eliminate the requirement for intervention to improve the overall value of the asset by increase the time to production and risks associated with plugremoval

Slim-hole, compact design allows for increases pump rates and tripping efficiencies by increasing line speeds during run-in-hole operations to reduce overall spread cost

Large flow-through ID allows for immediate flowback, well cleanup, and quick dissolve rates to increase operations efficiencies

Slip design, extrusion ring, load transfer, and cone profiles minimize the risk of swabbing, premature setting, and use of rubber elastomer components

Proprietary rapid dissolving material reduces time intervals between frac stages

Case studies

BLACK GOLD™ and BIG EASY® frac plugs perform successfully in harsh environment

Providing a reliable zonal isolation solution for extended reach laterals
