Cast Iron Bridge Plug

Cast Iron Bridge Plug

Cast Iron Bridge Plug

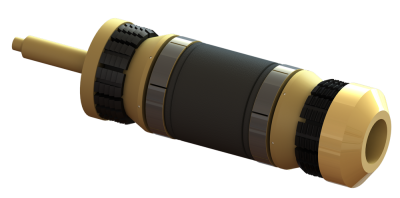

The Cast Iron Bridge Plug is among the most dependable and well known isolation plugs on the market. It is used for zonal isolation, well abandonment, casing pressure tests, and stimulation, and can be set via electric wireline using a wireline setting tool, or on tubing/coiled tubing using a hydraulic setting tool. The Cast Iron Bridge Plug is designed to be drilled out if necessary, maintaining sufficient strength while set.

Features and Benefits

Available in tubing and casing sizes from 2-3/8” to 20”

Wireline, tubing, or coiled tubing set

Drillable cast iron construction

Sets in casing grades greater than Q125

Anti-swab/anti-preset characteristics with 360 degree slips

Angled backup design prevents element extrusion

Setting force held in place by ratcheting, internal lock ring

400 degrees F plugs, sour gas plugs, and 125+ yield casing plugs are available upon request
