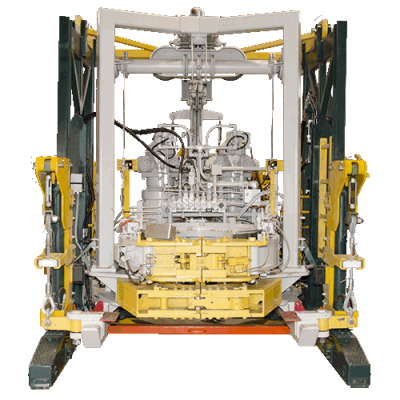

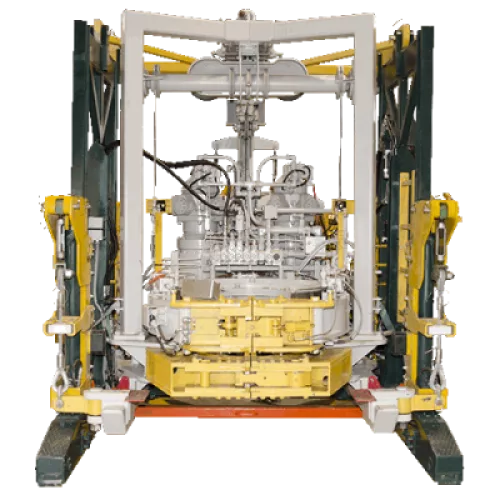

The RXT-20 Tong and XXT-25 Backup RTS Carriage offers super high torque with maximum make-up and break-out torque of 300,000 foot-pounds.

Features and Benefits

Built in slippage sensor for safe operation

Separation* between tong and backup is adjustable from 21.2 inches to 30 inches

Available for tubular size from 12.575 inches to 20 inches OD

Remote control for safer and easier rig operations environment

Three speed selection including low, medium and high

Carriage is integrated with a riser tong cassette and driven forward and backward on the rail to the well center by two hydraulic motors, and provides a means to adjust the elevation of the cassette with hydraulic cylinders

Riser tong cassette can alternatively be used with a tong pusher arm if necessary

*Separation is measured from distance between the midpoint of tong and backup dies. Tong die is 6 inches tall and backup die is 5 inches tall.
