ULTRAFLO™ Diverter System

Mitigating formation surge and drill pipe overfill
ULTRAFLO™ Diverter System

ULTRAFLO™ Diverter System

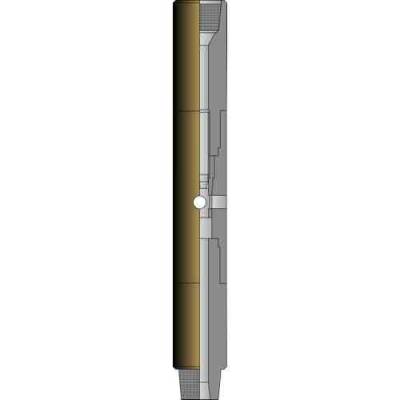

Expro's ULTRAFLO™ Diverter System, available in single, dual, or triple configurations, is an integral part of Expro's surge reduction system. The ULTRAFLO™ significantly increases well integrity by eliminating pressure drops across the casing or liner hanger equipment and reduced ID of the work string to reduce surge on the open-hole formation. Diverter systems mitigate formation surge and drill pipe overfill to ensure casing and liner strings are installed with minimal mud loss for improved zonal isolation. The system allows fluids to flow from the wellbore below, through the ID of the casing and drill pipe, and into the annular space above the diverter.

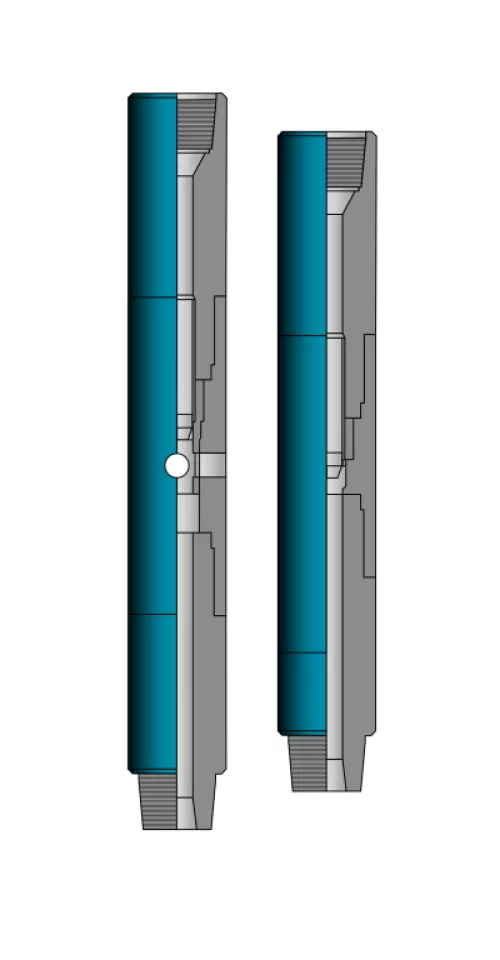

The ULTRAFLO™ Dual Diverter System is an exclusive, patented method to run diverter subs above and below the hanger when running casing with an inner string for maximum surge reduction. When combined with the ULTRASEAL™ Auto-Fill Float Equipment, the ULTRAFLO™ Diverter System provides optimal surge reduction in tight tolerance well bores.

Features and Benefits

High tensile, burst, and collapse ratings allow for increased operational flexibility

Large bypass flow area minimizes surge on the formation to reduce costly mud losses

Positive locking mechanism ensures diverter sub reliably remains closed throughout primary cementing operations

Diverter test device (DTD) is run with all diverter systems to confirm the diverter sub is closed and ensure functional reliability of the system

Pressure indications at diverter sub and DTD serve as a reliable secondary mechanism to verify location of drill pipe darts prior to reaching hanger running tool and plugs

Compatible with most setting balls and drill pipe darts to accommodate various operational requirements
