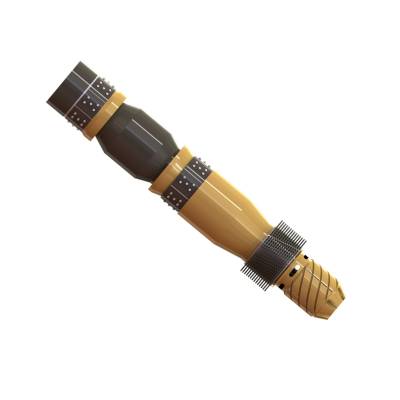

IRON-GATE™ Cast Iron Cement Retainer & Bridge Plug

IRON-GATE™ Cast Iron Cement Retainer & Bridge Plug

IRON-GATE™ Cast Iron Cement Retainer & Bridge Plug

IRON-GATE™ Cast Iron Cement Retainer & Bridge Plug uses a revolutionary adaptation of cast iron material designed to eliminate the difficulties commonly associated with remedial cementing and qualified short to long-term barrier systems including long drill out times. The IRON-GATE™ is API 11D1/ISO 14310 V3 qualified and provides reliable downhole integrity, facilitates efficient remedial cement placement, and eliminates the need for additional equipment by utilizing our MULTI-Setting Tool and MULTI-Wireline Adaptor Kit (M-WLAK).

Features and Benefits

Innovative slip retention device eliminates the risk of partial setting and losing slips downhole to provide a more debris tolerant product that eliminates additional trips in the wellbore and costly drill-out operations

MULTI-Setting Tool and M-WLAK are field convertible and compatible with the IRON-GATE™ and BIG EASY® Composite Cement Retainer for a cost-effective inventory and space management solution

Large bore tool design provides more efficient pump times by increasing the flow area by over 60%

Reliable sliding valve design increases seal integrity by reducing the risk of valve erosion

Enhanced elastomer element design prevents costly and time-consuming remedial operations by increasing pressure capabilities up to 6,000 psi

Field convertible to a top-venting bridge plug that can be conveyed via wireline, drill pipe, tubing, or coiled tubing with mechanical and hydraulic options available

Body-lock ring eliminates timely complex operations of closing the blow out preventer or hydril by locking the mandrel in position when opening the sliding valve without requiring annulus pressure

Top ring rotational lock design allows for faster drill out by preventing the top ring from spinning freely

Convertible to a hydro-mechanical bridge plug for single-trip negative testing, single-trip permanent and temporary abandonment, and cementing operations
