Customer challenges
- Petroleum Developmen Oman (PDO) engaged Expro to remediate a shallow aquifer in the C annulus, following regulatory requirements to isolate the source of sustained casing pressure (SCP) or proceed with well abandonment
- The required kill weight to overbalance the source aquifer closely matched the fracture pressure of a deeper weak formation. PDO needed a system capable of circulating heavy brine in a live annulus without inducing formation breakdown or total losses
- The C annulus contained significant volumes of degraded water-based mud (WBM), rendering it unsuitable for the traditional lubricate-and-bleed method
Expro Excellence

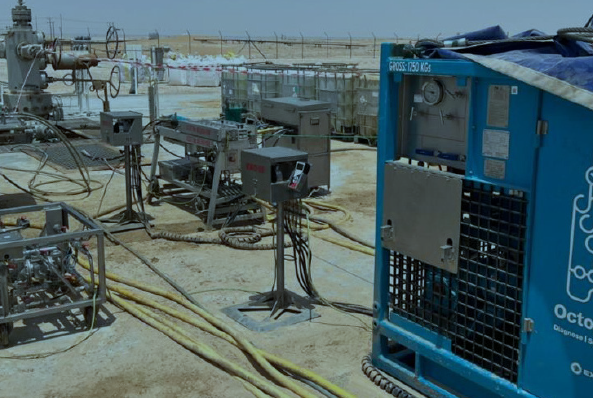

- The Octopoda® hose was conveyed to 230m depth, establishing a circulation path without pressure cycling the annulus, thereby protecting weak formations
- A 1.39 SG calcium chloride brine was selected, exceeding the required 1.16 SG kill weight to overbalance the source formation, leveraging in-situ dilution with annulus fluids to reduce total brine volume requirements
- After 11 days and 32 m³ of brine pumped, SCP was fully eliminated. Surface pressure remains at zero psi, as confirmed through periodic verification
- Circulating via the hose at depth in the annulus significantly reduced the time, kill fluid volume, and risks associated with highpressure, multi-cycle lubricateand- bleed operations
Value to client
- SCP in the C annulus was eliminated by re-establishing hydrostatic overbalance using a stable brine. This enabled dispensation removal and production to continue
- PDO avoided a costly workover or abandonment, with no production downtime during intervention
- This project was completed, and intervention objective achieved, from mobilization to de-mobilization within 2 weeks
- The Octopoda® Annulus Intervention fluid circulation process is more efficient and predictable compared to conventional lubricate-and-bleed and avoids the risk of formation fracture and total losses
