MPFM based portable testing improves field production allocation
Customer challenges
  • The customer was utilizing Expro Well Test Separators and another service providers conventional Multiphase Flow Meter to test brownfield assets
  • The test data from over 200 producing wells was used for production allocation, but this did not provide a good match to the stock tank production
  • The scope for conventional MPFM testing was limited due to challenging wells: o Low oil API o Low Gas Void Fraction (GVF) and flow rates o Varying water cuts o Emulsions
  • Some wells are producing from multiple reservoir zones
  • Pressure Volume Temperature (PVT) data was deemed to be unreliable for most of the wells being tested
Expro Excellence

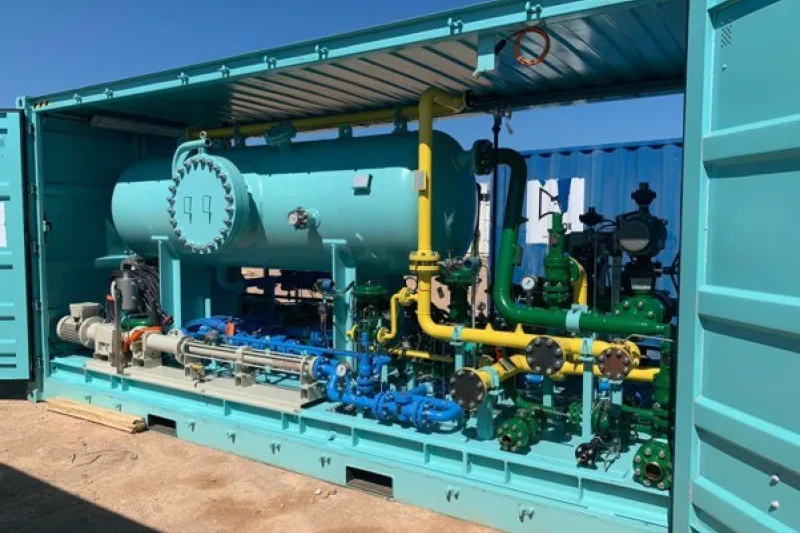

  • Expro performed a pilot testing campaign of eight wells utilizing its augmented 2600 MPFM skid incorporating state-of-the-art equilibrium phase sampler for onsite PVT analysis to demonstrate better testing performance on the challenging production wells
  • Expro 2600 MPFM provided satisfactory results and accurate three phase flow rate measurements due to:
  • Higher resolution and more accurate electrical impedance-based water cut data with near wall water cut measurement more representative BS&W sampling
  • Range of replaceable insert Venturi sizes can be deployed in the field allows (different beta-ratio) to be obtained which in turn expands the MPFM 2600 operating envelope o Equilibrium Phase Sampler deployment has reduced the reliance on the customer’s reservoir PVT data
  • Over 200 wells in multiple fields with varying Gas Oil Ratios (GOR) and water cuts have been tested at a frequency of two wells/day
Value to client
  • Accurate production allocation data has been provided for all the fields tested so far with the customer adjusting their allocation factor as needed
  • Lower equipment and personnel footprint lead to lower Carbon emissions
  • Electrical Submersible Pump (ESP) failure has been highlighted on multiple wells based on real-time production performance which enables the customer to plan for timely well intervention campaigns and subsequently optimize production
