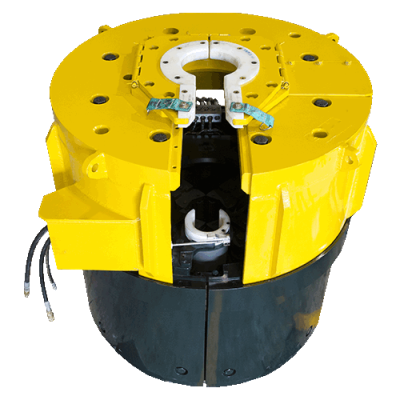

500-Ton Hydraulic Control Line Spider

500-Ton Hydraulic Control Line Spider

500-Ton Hydraulic Control Line Spider

The 500-ton Hydraulic Control Line Spider has a capacity of 500 tons and EXTENDED RANGE™ capabilities.

Features and Benefits

EXTENDED RANGE™ capabilities allow tool to run tapered tubing strings with only minor adjustments and without changing slips

Equipped with Frank’s unique spider/elevator interlock system, which ensures the spider/elevator is properly set on the pipe before the companion tool is allowed to open

Up to a 16 3/4-inch pass through diameter that provides the ability to pass large OD control line or umbilical clamps through the tool body

The foot pedal operated rotating control line guard ensures that the control lines are secured into the protective sleeve before the slips are allowed to close

Able to accept up to a 4-inch umbilical

50,000 pounds slip set force ensures a positive grip on hard chrome pipe and prevents slippage

Top cover rated to 100 tons
