Latch-Down Plugs

Latch-Down Plugs

Latch-Down Plugs

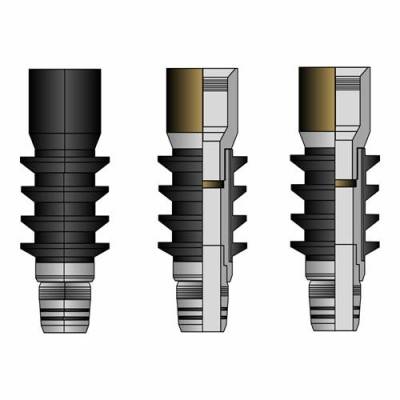

Our Latch-Down Plugs are designed to provide a reliable mechanical barrier to aid in the control of fluid and pressure from below conventional float equipment. Preventing the pressure from entering the casing after the cement job allows the release of the bump pressure of the plug after the cement column is in place.

Features and Benefits

Latch-down mechanism prevents cement from moving back up casing

Latch-down mechanism allows for the latching of multiple plugs for wet shoe track option and double plug option

Bump pressure 10,000 psi

Back pressure 5,000 psi (with two plugs latched)

Plug rated to 350 degrees F

Compatible with WBM, OBM, and SBM

Bottom plugs have option for 1,250 psi, 1,500 psi, or 3,000 psi rupture disk

Rupture disk is made from nickel alloy and will result in no debris falling onto the floats
