XTREME3™ Connector

XTREME3™ Connector

XTREME3™ Connector

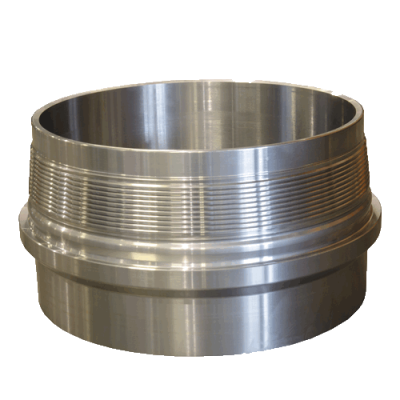

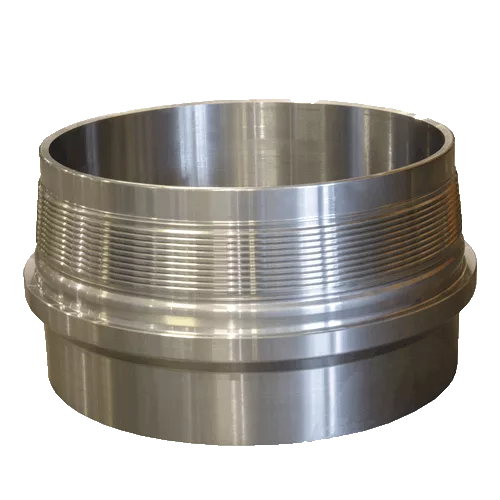

The patented XTREME3™ Connector is a deepwater-ready, premium threaded connection featuring a standard metal seal and a negative load flank, ensuring increased performance and reliability. This connector was developed for the three provinces governing its name: extreme tension, extreme compression and extreme bending.

Features and Benefits

Tapered shoulder keeps seals engaged while in tension by suppressing radial deflection

Increased shoulder torque helps resist back-out due to vibration

Angle of thread cone allows for optimized stress distribution across the thread pattern and a centered load distribution in relation to the pipe wall

Negative load flank on the teeth keeps the threads engaged under loading and prevents “jump-out”

Optimized thread relief grooves alleviate stress in critical locations on the connector

A deep-stab, lower alignment face allows for quicker make-up and cross-thread prevention

Featured reservoirs reduce excess dope build-up and subsequent dope pressure

Environmental metal seal allows for a more reliable seal at higher pressures

Half-dovetail groove prevents the elastomeric o-ring from interfering with make-up
